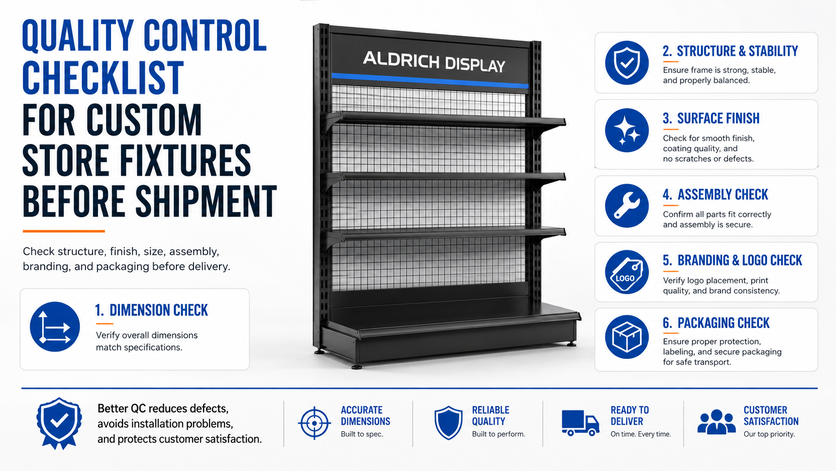

Quality control is one of the most important steps in custom store fixture manufacturing.
A fixture may look finished after production.
But before shipment, it should still be checked carefully.
This helps reduce mistakes, installation problems, and customer complaints.

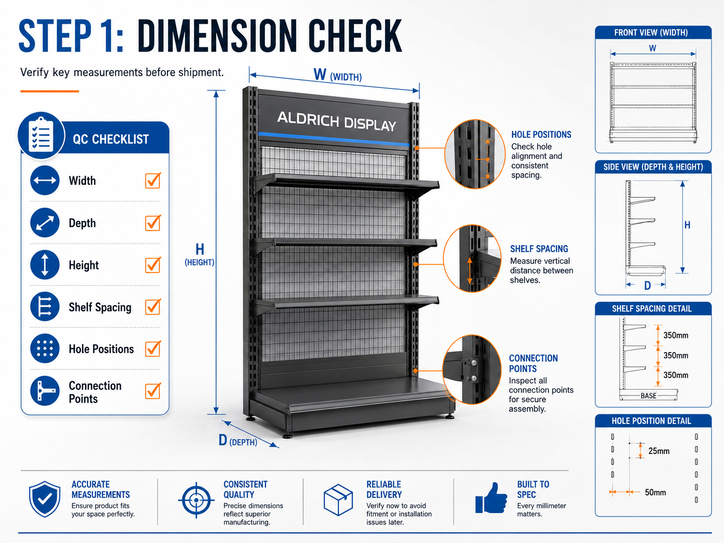

1. Dimension check
The first step is checking the main dimensions.
This includes:
- width
- depth
- height
- shelf spacing
- hole positions
- connection points
Even small dimension errors can cause assembly or store installation problems.

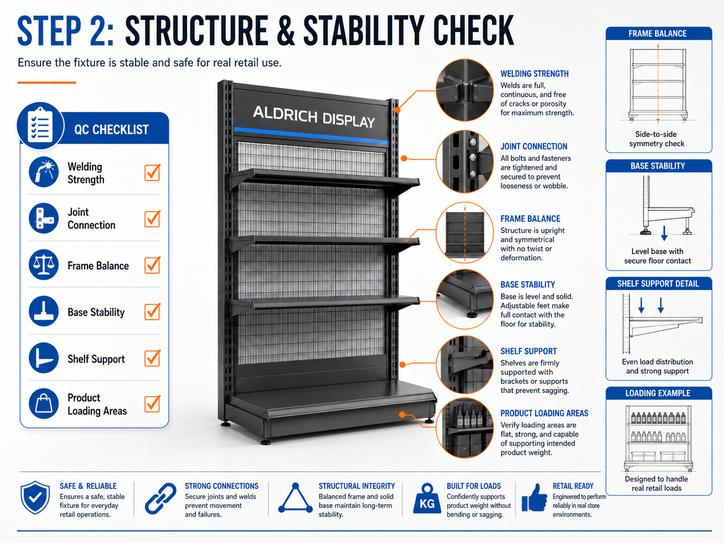

2. Structure and stability check
Custom store fixtures need to be stable and strong enough for real use.
The QC team should check:
- welding strength
- joint connection
- frame balance
- base stability
- shelf support
- product loading areas
For retail use, safety and stability are very important.

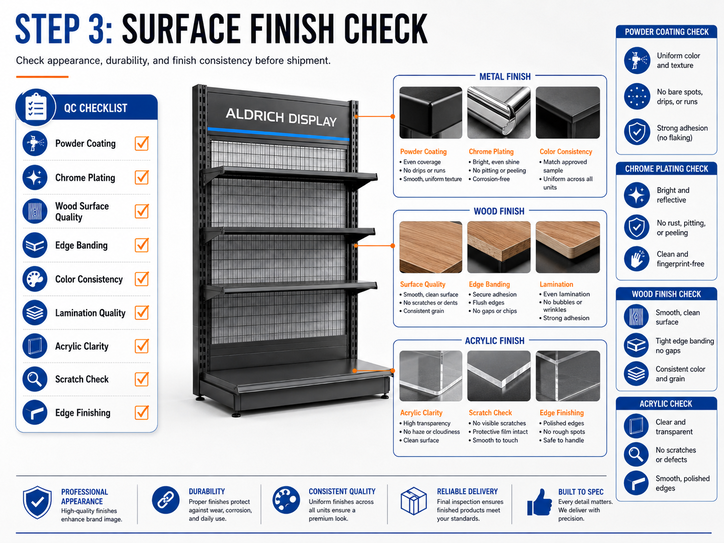

3. Surface finish check
The finish affects both appearance and durability.
For metal fixtures, the team should check powder coating, chrome plating, or other finishes.
For wood fixtures, the team should check surface quality, edge banding, color, and lamination.
For acrylic displays, the team should check scratches, transparency, and edges.

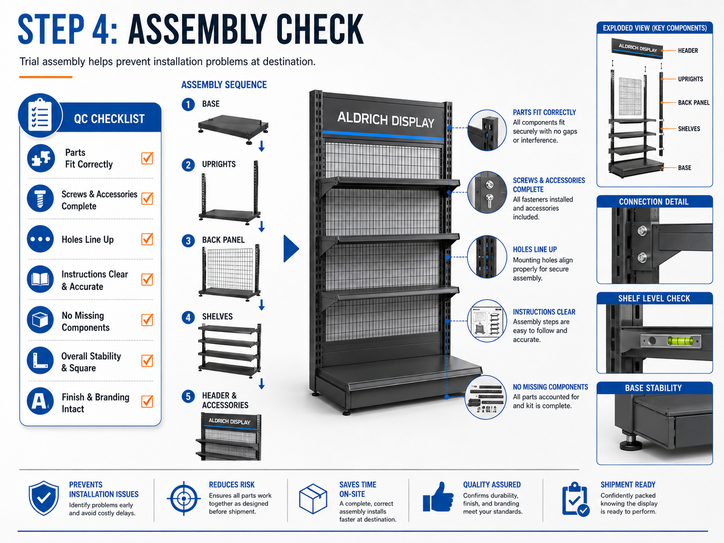

4. Assembly check
If the fixture is KD packed, trial assembly is very important.
The team should confirm:
- parts fit correctly
- screws and accessories are complete
- assembly holes line up
- instructions are clear
- no missing components exist
A product that looks good but cannot be assembled smoothly will create problems at destination.

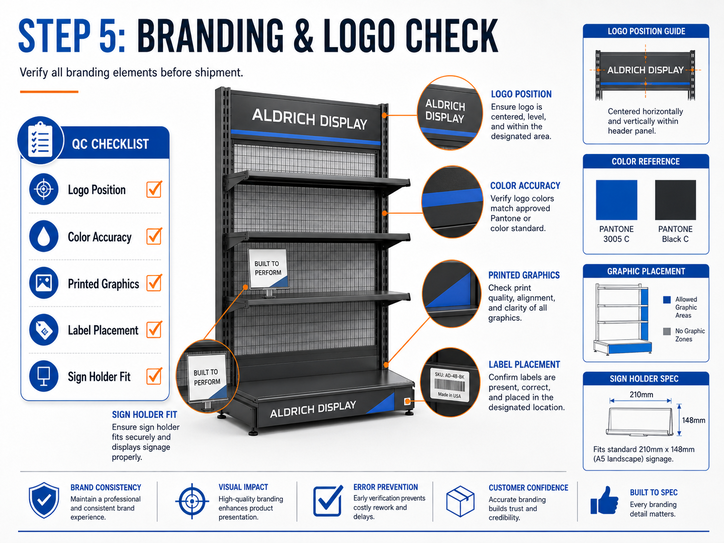

5. Branding and logo check
Many custom retail fixtures include branding elements.
QC should check:
- logo position
- color accuracy
- printed graphics
- label placement
- sign holder fit
Branding mistakes can be costly to correct later.

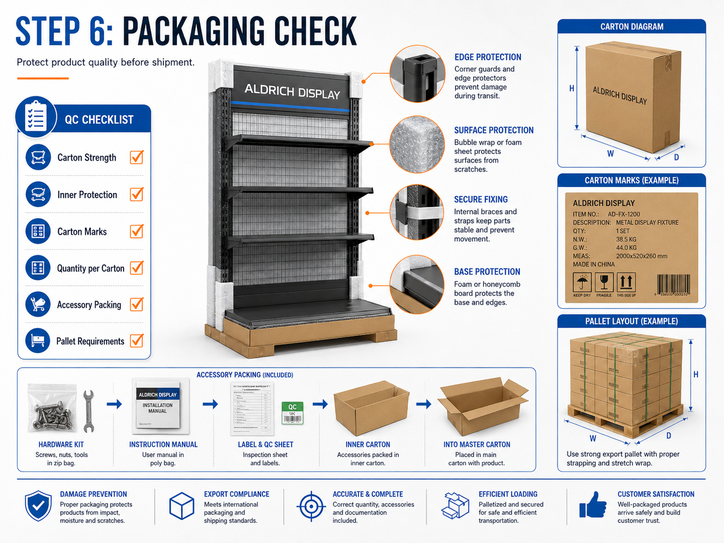

6. Packaging check
Before shipment, packaging should also be inspected.
The team should check:
- carton strength
- inner protection
- carton marks
- quantity per carton
- accessory packing
- pallet requirements
Good packaging protects the quality created during production.
Final thought
Quality control is not only about finding defects.
It is about protecting the entire project result.
For custom store fixtures, a clear QC checklist helps ensure the product is ready for shipment and real retail use.
